Swing Automatic Door
A. Maximum load capacity 450 kg, maximum door width 2.0 m; B. Worm gear helical transmission for smoother operation; C. The controller's debugging window uses an LCD-12864 Chinese LCD screen, making debugging simple and intuitive. Its powerful external interface allows for interoperability...- Product Details
- PRODUCTS ADVANTAGE
Anhui Haida Door Control Equipment Co., Ltd. is one of the most experienced manufacturers and suppliers of swing automatic door in China. With abundant experience, we warmly welcome you to wholesale bulk high quality products in stock here and get free sample from our factory. Customized orders are welcome.
A. Maximum load capacity 450 kg, maximum door width 2.0 m;
B. Worm gear helical transmission for smoother operation;
C. The controller's debugging window uses an LCD-12864 Chinese LCD screen, making debugging simple and intuitive. Its powerful external interface allows for interoperability with any access control system.
D. Single or double opening direction selection, with automatic communication between the two doors for synchronized opening and closing.
| Suitable doorwidth | Within 2000mm |
| Suitable doorweight | Within 450kg |
| Opening Angle | Bidirectional+90° |
| Opening direction | Both ways |
| Open hold time | 1-20S adjustable |
| Opening speed | 4-10S adjustable |
| Buffer speed | Adjustable |
| Closing speed | 4-10S adjustable |
| Remote control function | Open;Off;Hold;Lockingfunction |
| Automatic overload protection | Yes resistance(overload)rebound |
| Closing and stopping position | Automatic/external limit |
| Closing bufferfunction | Distance adjustable |
| Distinguish between leftand right doors | No distinguish |
| Control electric lock function | After the dooris closed,the external electric lock provides 12V,1Apower supply(electric lock) |
| Powersupply | 110V-230V |
| Output power | Static 6W,maximum 150W |

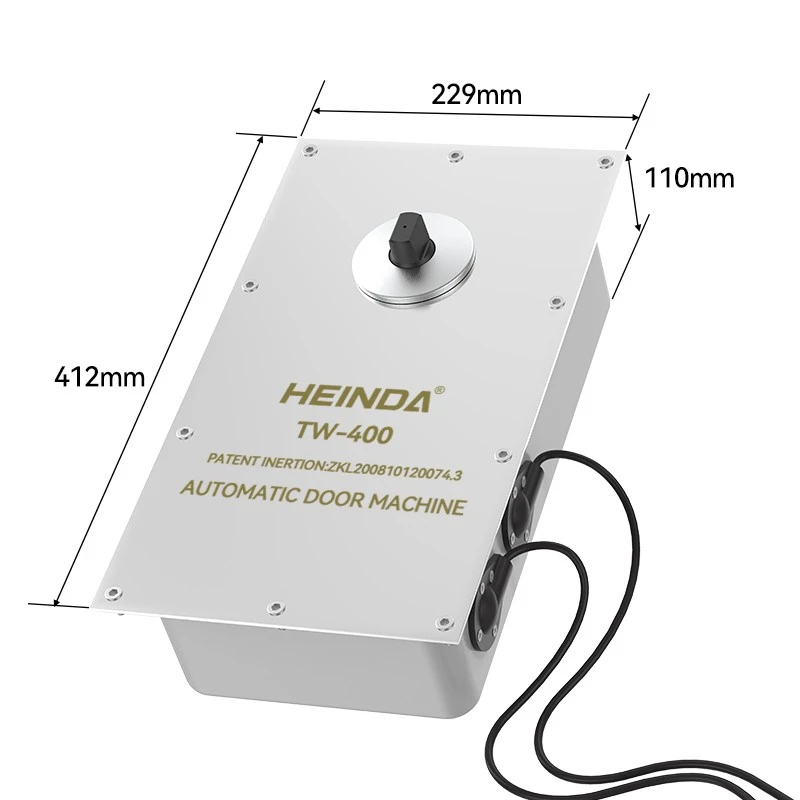

| Main machine dimensions | 412(L)×229(W)×110(H) |
| Controller Size | 212(L)×168(W)×56(H) |
| Two-door communicationfunction | Yes (plug-in type) |
| Backup power function | Optional |
| Torque | Maximum 270N/M(adjustable) |
| Shielding signal Settings | Yes |
| Active anti-clamping | Safety light orsafety light curtain |
| Passive anti-clamp | Resistance rebound function(2seconds) |
| Working procedure | Power to close the door-lock-accept the door signal to open the door-buffer-stop the door delay-close the door-buffer-stop the door-lock |
