Heavy Machine 300kg High Quality Floor Spring
Model：TS-80Max Door Weight：320kg
Max Door Width：1400mm
- Product Details
- PRODUCTS ADVANTAGE
Anhui Haida Door Control Equipment Co., Ltd. is one of the most experienced manufacturers and suppliers of heavy machine 300kg high quality floor spring in China. With abundant experience, we warmly welcome you to wholesale bulk high quality products in stock here and get free sample from our factory. Customized orders are welcome.

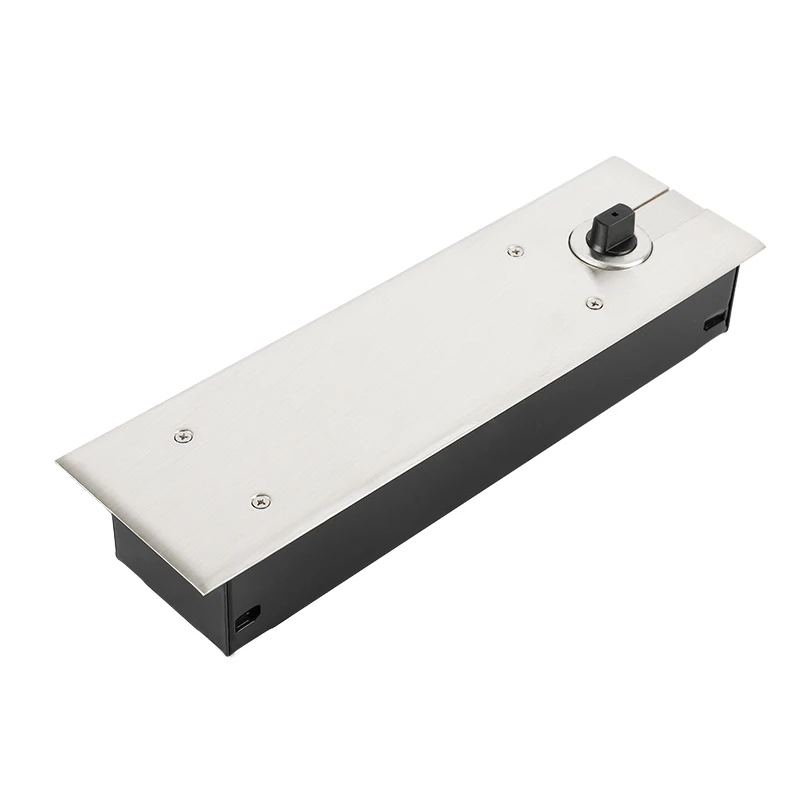

The TS-80 Stainless Steel Single Cylinder Floor Spring can be adapted to almost any installation. The door closer's compact body allows it to be used in areas where larger closers cannot be used. Its versatility allows for installation in thin slab concrete substructures. The TS-80 is available with a wide selection of interchangeable door spindles for virtually any floor covering or threshold application.
Features
A. 2,000,000cycles tested by Intertek
B. ANSI/BHMA 156.4 Grade 1 Certification
C. Germany design same as BTS80, popular all over the world
D. Door weight upto 300KG
E. Applicable for glass door, wooden door, aluminum door and frame door
F. Germany type spindle for optional
Specifications
|
Model |
TS-80 |
| Applicable Standard | EN1154 & ANSI156.4&UL |
| Engine Cylinder | Single |
| Max Door With | 1400mm |
| Max Door Weight | 300kg |
| Max Open Degree | 180° |
| Stop Device | 90° & 130° |
| Latching Speed Adjustment | 0-20° |
| Closing Speed Adjustment | 20°-90° |
| Application Temperature | -40°-60° |
| Dimension:Length*Width*Height | 341mm*78mm*60mm |
Product Show
Dimension of Appearance
