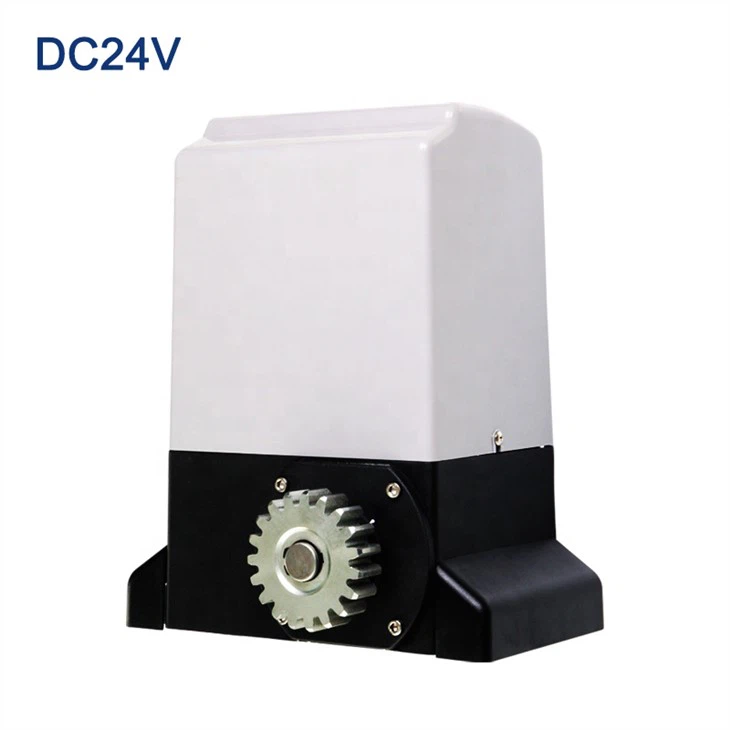

Electric Sliding Gate Door Opener
Motor Voltage： DC24V/ AC230V/ AC110VWorking System： S4-25%
Running Time： 10 min
- Product Details
- PRODUCTS ADVANTAGE
Anhui Haida Door Control Equipment Co., Ltd. is one of the most experienced manufacturers and suppliers of electric sliding gate door opener in China. With abundant experience, we warmly welcome you to wholesale bulk high quality products in stock here and get free sample from our factory. Customized orders are welcome.
FEATURES
● Brushless waterproof motor: High-speed pure copper core powerful motor.More stable operation and super mute.
● Control chip:Multi-function wiring port,multi-speed adjustment,resistance adjustment, door closing delay adjustment,Super large transformer,more convenient functions.
● Pure copper motor: Quiet and durable.Lower energy consumption.
● Install infrared sensor: By installing an infrared anti-induction device, if the door opener deters an obstacle within the monitoring range during the closing process, the door opener stops closing and opens immediately.
● Manual door opening when power is off: The key can be used to switch the manual mode to start, or a backup power supply can be installed to continue working after power is off.
SPECIFICATIONS
|
Motor Voltage |
DC24V/ AC230V/ AC110V |
|
Working System |
S4-25% |
|
Running Time |
10 min |
|
Max. Gate Weight |
800kg/1000kg/1500kg |
|
Functions |
1. Soft start and soft stop 2. Resistance stop 3. Overload protection 4. Infrared protection 5. Reserve power 6.Good self-hold performance |
|
Limit switch |
Spring/magnetic limit switch |
|
Application |
Villa, Residential, commercial and courtyard |
|
Dimension |
270*155*315mm |
|
Gate Moving Speed |
14m/min |
|
Operating Temperature |
-45℃ ~ +65℃ |
|
Standard Configuration |
1*motor,1*control panel,2*manual Override Keys, remotes, fixing hardware |
|
Optional Accessories |
Alarm lamp, mounting plate, wireless keypad, wireless wall button, etc |
|
Certificates |
CE, CCC |
PRODUCT DETAILS

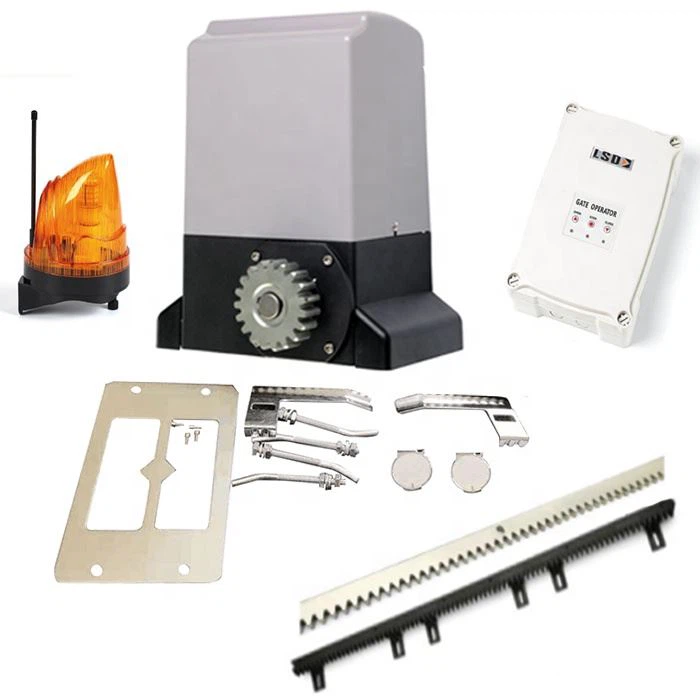

Standard Configuration
Optional Accessories
Application
It can be installed on various stainless steel doors, iron art doors, copper art doors, and solid wood doors.
Installation Overview
Why Choose Us
1. The world's biggest floor spring manufacturer in China.Daily production of over 15,000PCS.
2. The factory has three production bases located in ZHEJIANG, ANHUI, and JIANGSU three provinces. The area covers 72,000 square meters.
3. Over 33 years of producing experience. Ripe production process.
4. Impeccable testing system covered raw material, components, and semi-finished products.
5. HAIDA has its own national test laboratory (Intertek Satellite Lab)to make sure the growth of our company.
FAQ
Q: What is the minimum quantity?
No MOQ,We can sell even 1PCS.
Q: How long is the delivery time?
10 to 30days depending on your order quantity.
Q: Can you send samples before placing the order
Yes, sure. we can provide samples for quality checking.
Q: Do you provide OEM service?
Yes, we do.
Q: How about the payment terms?
T/T,D/P,L/C,Paypal,Western union and cash all acceptable.
Q: How about your quality warranty?
When the products got problem during our warranty period, we will provide.
